GLYTCH Double-Door Monthly Box — Manufacturer Spec v0.1

Project

Locked structure

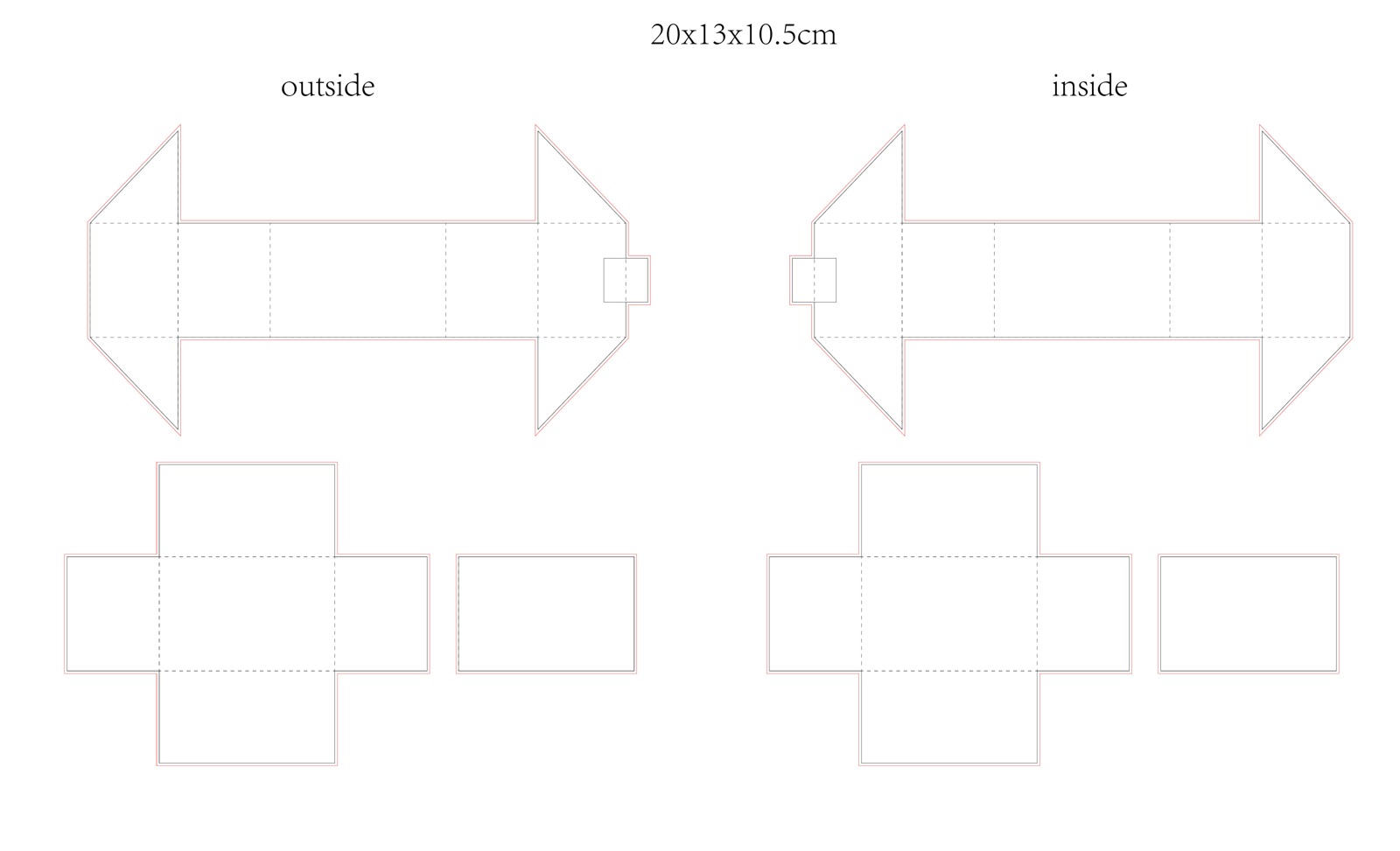

• Template file: `box_template.pdf`
• Template indicated size: **20 x 13 x 10.5 cm**
• Rigid hardcover/gatefold construction with two opening doors.
• This replaces prior Sleeve + Handle concept.

Contents

Tray / insert

• Tub cavity: recommend Ø94–96 mm x 50–60 mm deep, confirm actual tub fit with sample.
• Card pack pocket: recommend 72 x 103 x 10 mm minimum, finger notch.
• Optional small QR/welcome insert slot if available without increasing tooling complexity.

Materials / construction request

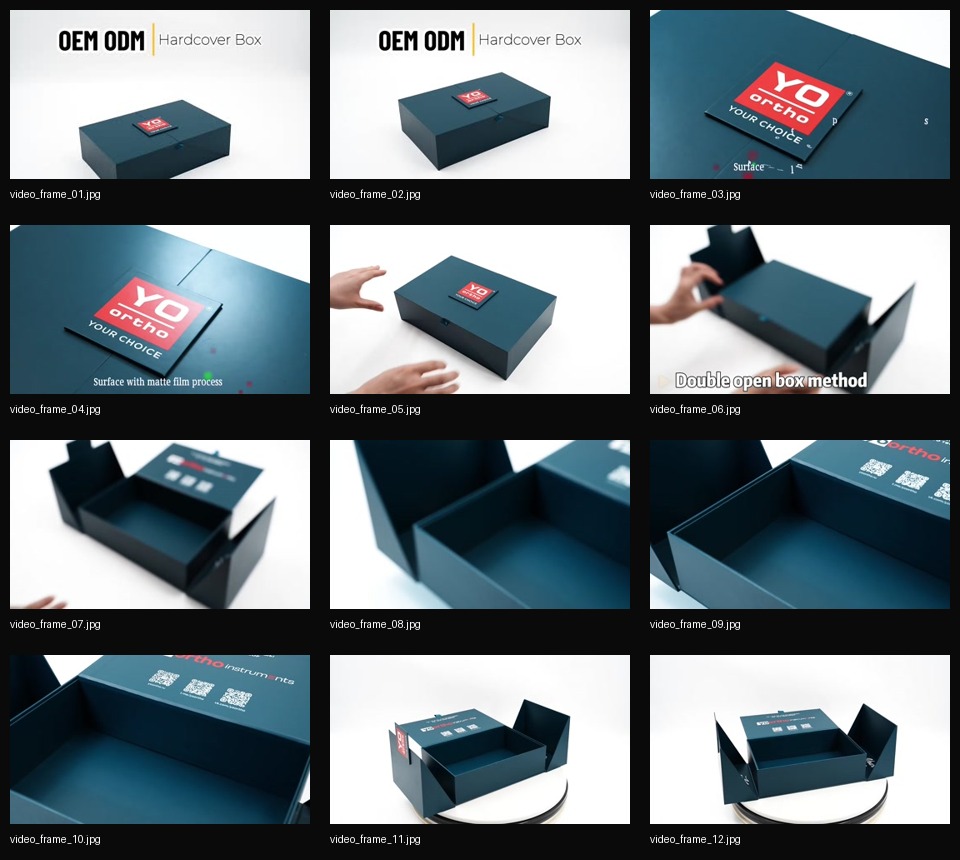

• 2.0–2.5 mm greyboard rigid box core, or factory recommendation matching sample video stiffness.
• Wrapped with premium coated paper.
• Anti-scratch matte lamination on outside.
• Hidden magnets for closure if compatible with this structure.
• Reinforced hinges to survive repeated opening.
• Pre-assembled boxes vs flat-pack options and shipping impact.

Print / finish direction

• Exterior: matte black / rich black.
• Interior: flavor-color flood per SKU.
• GLYTCH logo: silver foil or green foil + emboss/deboss plaque area.
• Character art: spot UV selective gloss over matte base.
• Glitch pattern / energy strokes: spot UV.
• Optional foil edge details around front doors.

Production layer requirements:

• `DIELINE` layer: factory cut/fold lines, non-printing.
• `ARTWORK` layer: CMYK artwork, 300 dpi images at final size.
• `SPOT UV` layer: vector masks, 100% spot color.
• `FOIL` layer: vector masks, 100% spot color.
• `EMBOSS` / `DEBOSS` layer: vector masks, 100% spot color.
• 3 mm bleed minimum; 3–5 mm safety inside cuts/folds.
• Fonts outlined; linked images embedded; provide PDF/X-4 + AI if possible.

What we need from factory now

Legal note

GLYTCH Packaging Legal + Marketing Placement Map v0.1

Core product facts locked

• Serving size: **1 scoop (5 g)**
• Servings per container: **60**
• Net wt: **300 g (10.6 oz)**
• Caffeine: **120 mg per serving**
• Company: **Manufactured for: Juno H&M, LLC, Medford, OR 97501**
• Website: **glytchenergy.com**
• Barcode/UPC: placeholder until GS1 UPCs are available.
• Tagline: **OVERRIDE EVERYTHING**. Do not use “SMART ENERGY.”

Tub: legally required / cannot be empty

Tub front PDP

• GLYTCH logo
• Flavor name
• Statement of identity: **Powdered Dietary Supplement**
• Net wt: **NET WT 300 g (10.6 oz) / 60 servings**
• Caffeine callout: **120 mg caffeine per serving**

Tub side/back label

• Supplement Facts panel: serving size, servings, dietary ingredients, amounts, %DV where applicable.
• Other ingredients list.
• Directions: `Mix 1 scoop (5 g) with 12–16 oz cold water. Do not exceed recommended serving.`
• Warning: `Contains caffeine. Not recommended for children, pregnant or nursing women, or individuals sensitive to caffeine. Consult a healthcare professional before use if you have a medical condition or take medication.`
• Storage: `Store in a cool, dry place. Keep container tightly closed.`
• Manufacturer/distributor info.
• Lot/EXP blank zone.
• Allergen/facility statement if applicable.

Outer box: marketing + duplicate legal

Outside front doors / hero side

• GLYTCH logo + **OVERRIDE EVERYTHING**.
• Flavor name large.
• Character art, spot UV.
• Statement of identity: **Powdered Dietary Supplement**.
• Net wt: **300 g (10.6 oz) / 60 servings**.
• Short product promise only, no disease/medical claims.

Outside side panels

• Vertical GLYTCH mark / flavor stripe.
• `Includes collectible card pack`.
• QR to app / loyalty program.
• Website/social.

Outside back / bottom legal zone

• Supplement Facts or “see tub label” approach only if legal review approves. Safer: duplicate full facts on box if space allows.
• Other Ingredients.
• Directions.
• Warnings.
• UPC placeholder.
• Manufactured for line.
• Recycle/material symbols if available.

Inside doors

• Left: character/lore hit or flavor-specific line.
• Right: app/loyalty program CTA.
• Avoid chance/sweepstakes language for now.
• Approved safe phrasing: `Join the GLYTCH loyalty program in the app for points, drops, and member perks.`

EVA tray area

• Center tub well.
• Side card pack pocket.
• Optional hidden QR/welcome card under tub or inside lid.

Loyalty/perks language guardrail

• `collectible card pack`
• `scan in the app`
• `loyalty points`
• `member perks`
• `drops`

Strawbie + Cream

Front: `Strawbie + Cream` + `OVERRIDE EVERYTHING` + `Powdered Dietary Supplement` + `NET WT 300 g (10.6 oz) / 60 servings` + `120 mg caffeine per serving`

Other Ingredients draft source list (needs final regulatory cleanup):
Caffeine Anhydrous, Flush-Free Niacin, Vitamin B6, Vitamin B12 (1%), Sucralose, Silicon Dioxide, Color Rojo, Malic Acid, Lactic Acid, Organic Stevia, Inulin, Taurine, L-Theanine, Sodium Citrate, Potassium Citrate, Magnesium Citrate, Vitamin C, Citric Acid, Tapioca Fiber, Strawberry Cream Flavor, Vanilla Cream Flavor, Coconut Cream Flavor.

Box inside line options:

• the first flavor is not here to be polite.

• sweet up front. problem after that.

Passionfruit Guapo

Front: `Passionfruit Guapo` + `OVERRIDE EVERYTHING` + `Powdered Dietary Supplement` + `NET WT 300 g (10.6 oz) / 60 servings` + `120 mg caffeine per serving`

Other Ingredients draft source list (needs final regulatory cleanup):
Caffeine Anhydrous, Flush-Free Niacin, Vitamin B6, Vitamin B12 (1%), Sucralose, Silicon Dioxide, Malic Acid, Lactic Acid, Apple Cider, Organic Stevia, Inulin, Ethyl Maltol, Taurine, L-Theanine, Sodium Citrate, Potassium Citrate, Magnesium Citrate, Vitamin C, Citric Acid, Tapioca Fiber, Guava Passion Flavor.

Box inside line options:

• built like a tank. tastes like vacation made a bad decision.

• soft heart. heavy armor. tropical damage.

Cotton Candy

Front: `Cotton Candy` + `OVERRIDE EVERYTHING` + `Powdered Dietary Supplement` + `NET WT 300 g (10.6 oz) / 60 servings` + `120 mg caffeine per serving`

Other Ingredients draft source list (needs final regulatory cleanup):
Caffeine Anhydrous, Flush-Free Niacin, Vitamin B6, Vitamin B12 (1%), Sucralose, Silicon Dioxide, Red Color, Blue Color, Malic Acid, Lactic Acid, Apple Cider, Organic Stevia, Inulin, Ethyl Maltol, Taurine, L-Theanine, Sodium Citrate, Potassium Citrate, Magnesium Citrate, Vitamin C, Citric Acid, Tapioca Fiber, Cotton Candy Flavor, Vanilla Flavor.

Box inside line options:

• the cute one is usually the first mistake.

• sugar-cloud energy with boss-fight manners.

Fire Watermelon

Front: `Fire Watermelon` + `OVERRIDE EVERYTHING` + `Powdered Dietary Supplement` + `NET WT 300 g (10.6 oz) / 60 servings` + `120 mg caffeine per serving`

Other Ingredients draft source list (needs final regulatory cleanup):
Caffeine Anhydrous, Flush-Free Niacin, Vitamin B6, Vitamin B12 (1%), Sucralose, Silicon Dioxide, Pink Color, Red Color, Malic Acid, Lactic Acid, Apple Cider, Organic Stevia, Inulin, Ethyl Maltol, Taurine, L-Theanine, Sodium Citrate, Potassium Citrate, Magnesium Citrate, Vitamin C, Citric Acid, Tapioca Fiber, Watermelon Flavor.

Box inside line options:

• hydration arc cancelled. chaos approved.

• watermelon learned arson and got marketable.

Blue Razz

Front: `Blue Razz` + `OVERRIDE EVERYTHING` + `Powdered Dietary Supplement` + `NET WT 300 g (10.6 oz) / 60 servings` + `120 mg caffeine per serving`

Other Ingredients draft source list (needs final regulatory cleanup):
Caffeine Anhydrous, Flush-Free Niacin, Vitamin B6, Vitamin B12 (1%), Sucralose, Silicon Dioxide, WS-3 Cooling Agent, Blue Color, Malic Acid, Lactic Acid, Apple Cider, Organic Stevia, Inulin, Ethyl Maltol, Taurine, L-Theanine, Sodium Citrate, Potassium Citrate, Magnesium Citrate, Vitamin C, Citric Acid, Tapioca Fiber, Blue Razz Flavor.

Box inside line options:

• cold flavor. bad intentions.

• fast, sharp, and slightly unfair.

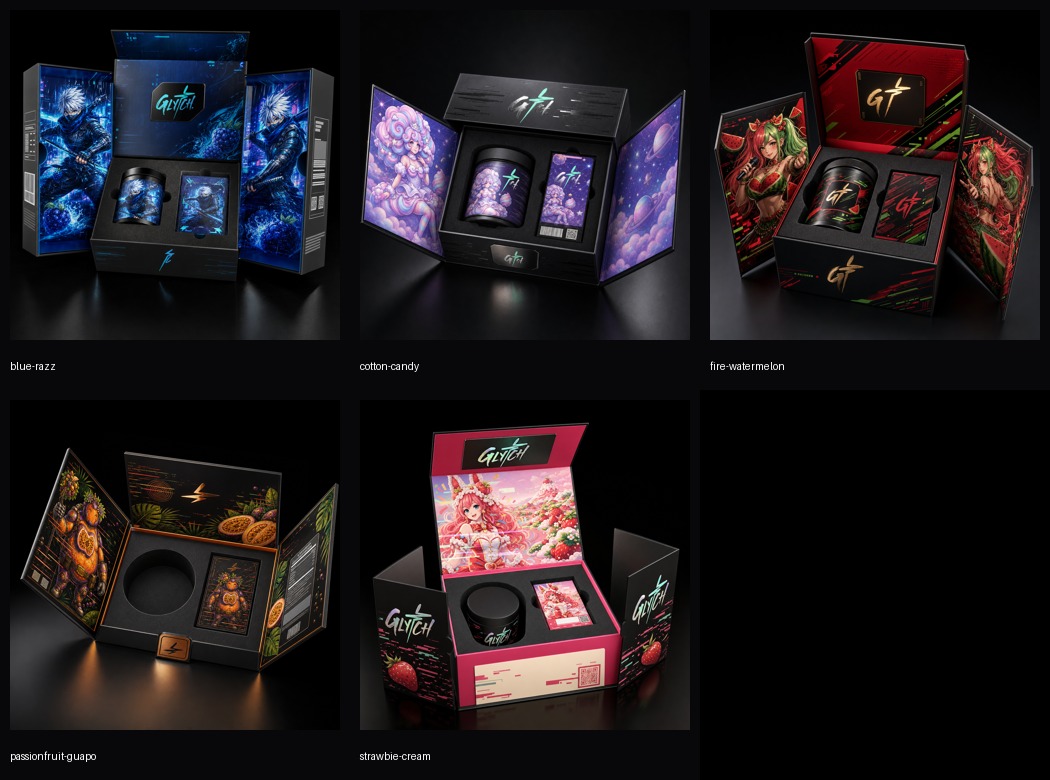

GPT Image 2 Packaging Render Prompt Template

Use these for concept renders only. Final print files must use the factory dieline and exact logo/vector assets.

Global prompt body

Locked structure: double-door gatefold rigid box, 20 x 13 x 10.5 cm, matte black exterior, two opening doors, central black EVA foam tray with one Ø90mm x 85mm HDPE tub cavity and one 70 x 100 x 8mm collectible card pack pocket.

Brand direction: luxury gamer energy powder monthly unboxing box. Exterior matte black. Interior flavor-color flood. GLYTCH logo area uses foil/emboss plaque. Character art area uses spot UV gloss. Glitch pattern uses spot UV. Tagline is OVERRIDE EVERYTHING. Never use SMART ENERGY.

Do not invent fake readable text. Use clean placeholder blocks for legal panel, UPC, Supplement Facts, and app QR zones. Render the box as a realistic product mockup on black background, showing open double-door structure, EVA insert, tub silhouette, and card pack pocket.

Per-flavor replacements

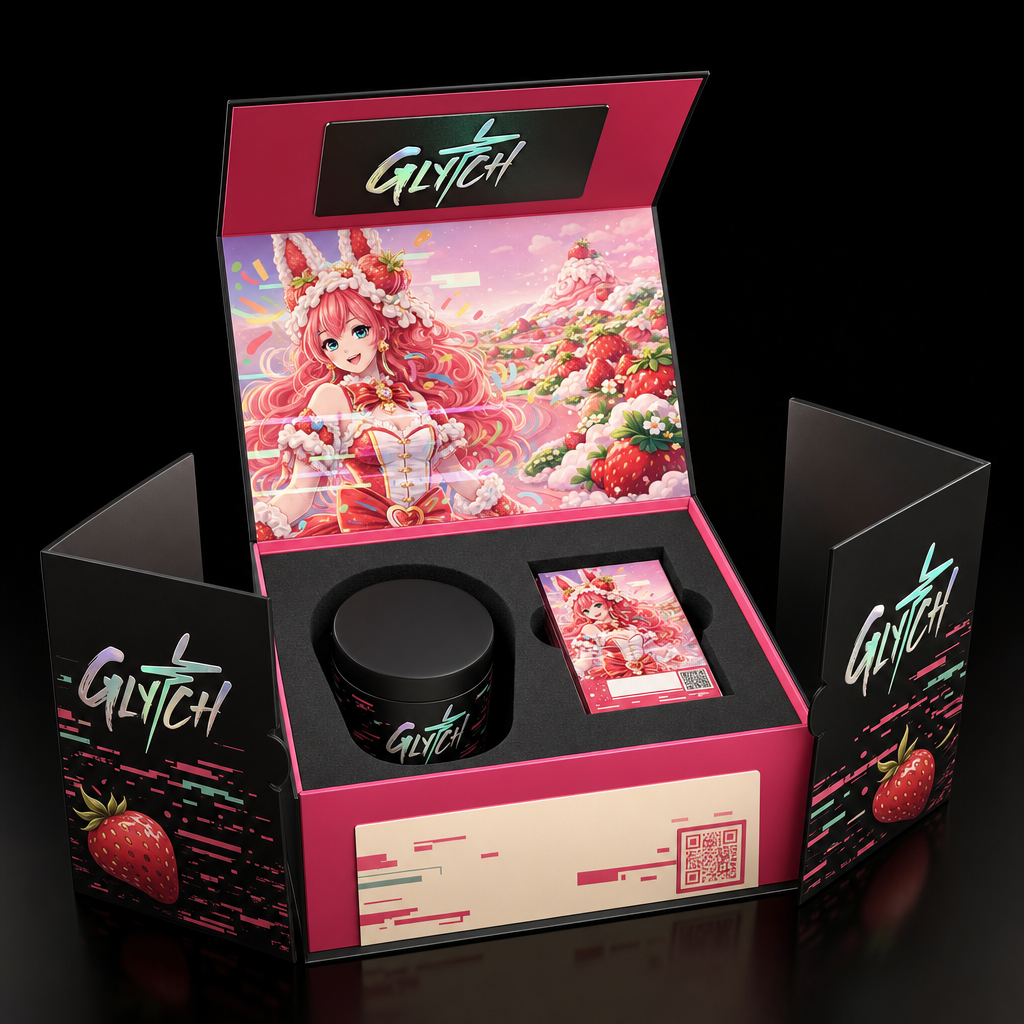

• Strawbie + Cream: pink/cream interior, use Strawbie poster as character art reference.

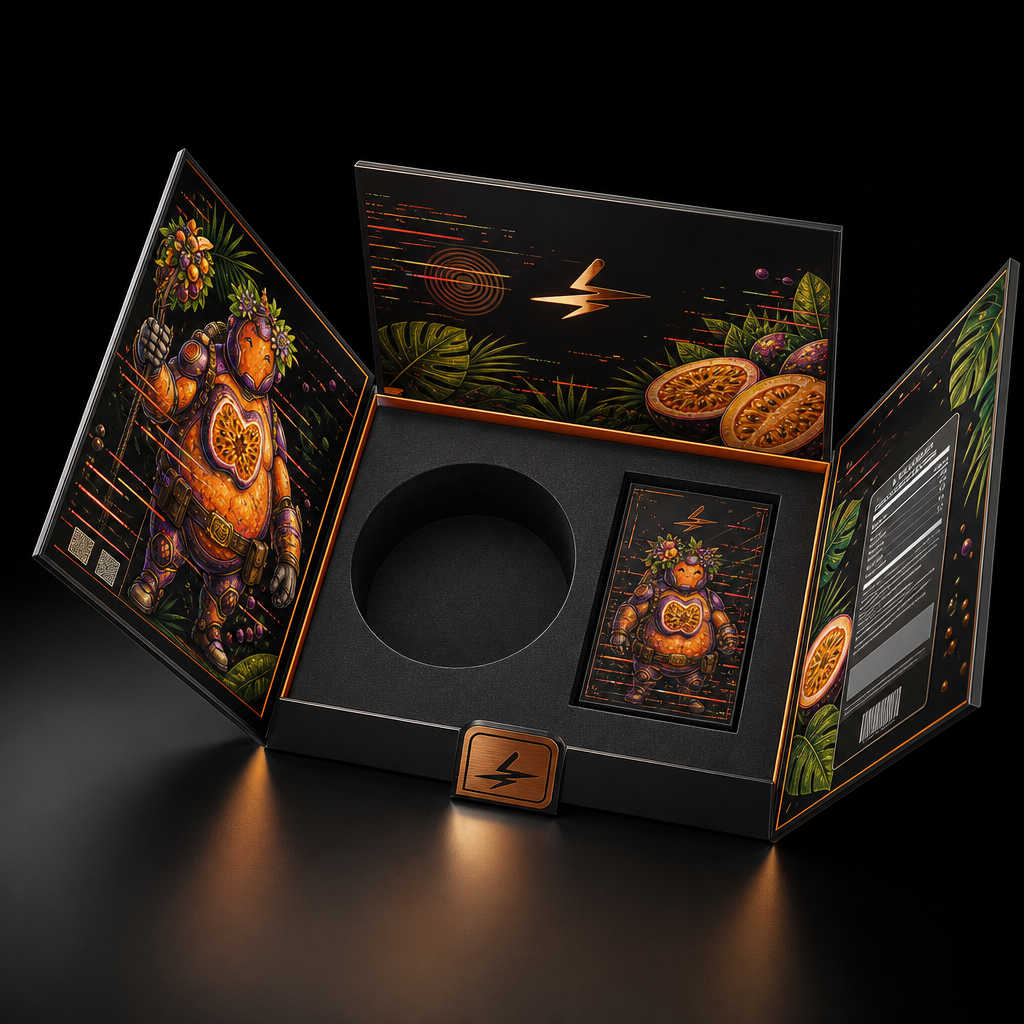

• Passionfruit Guapo: orange/tropical green interior, use Guapo poster as character art reference.

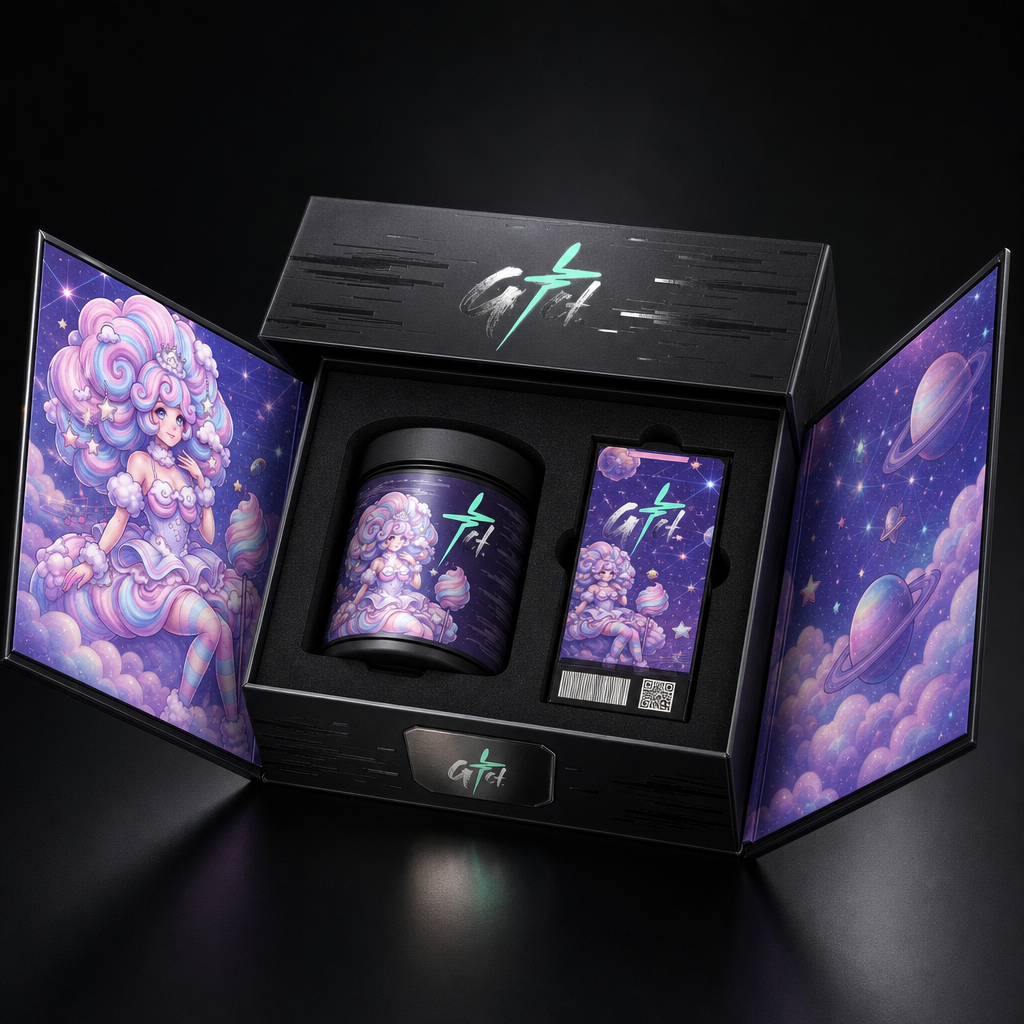

• Cotton Candy: lavender/pastel blue-pink interior, use Cotton Candy poster as character art reference.

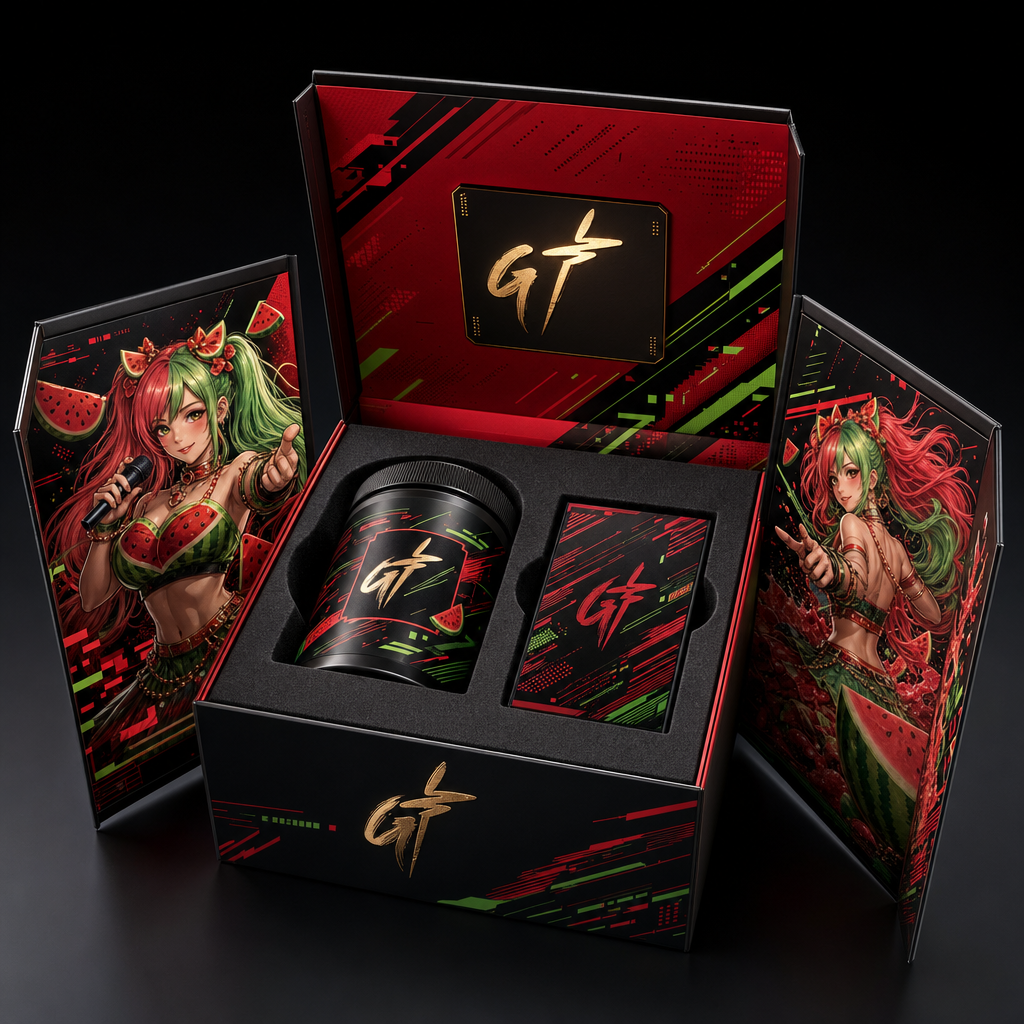

• Fire Watermelon: red/neon green interior, use Fire Watermelon poster as character art reference.

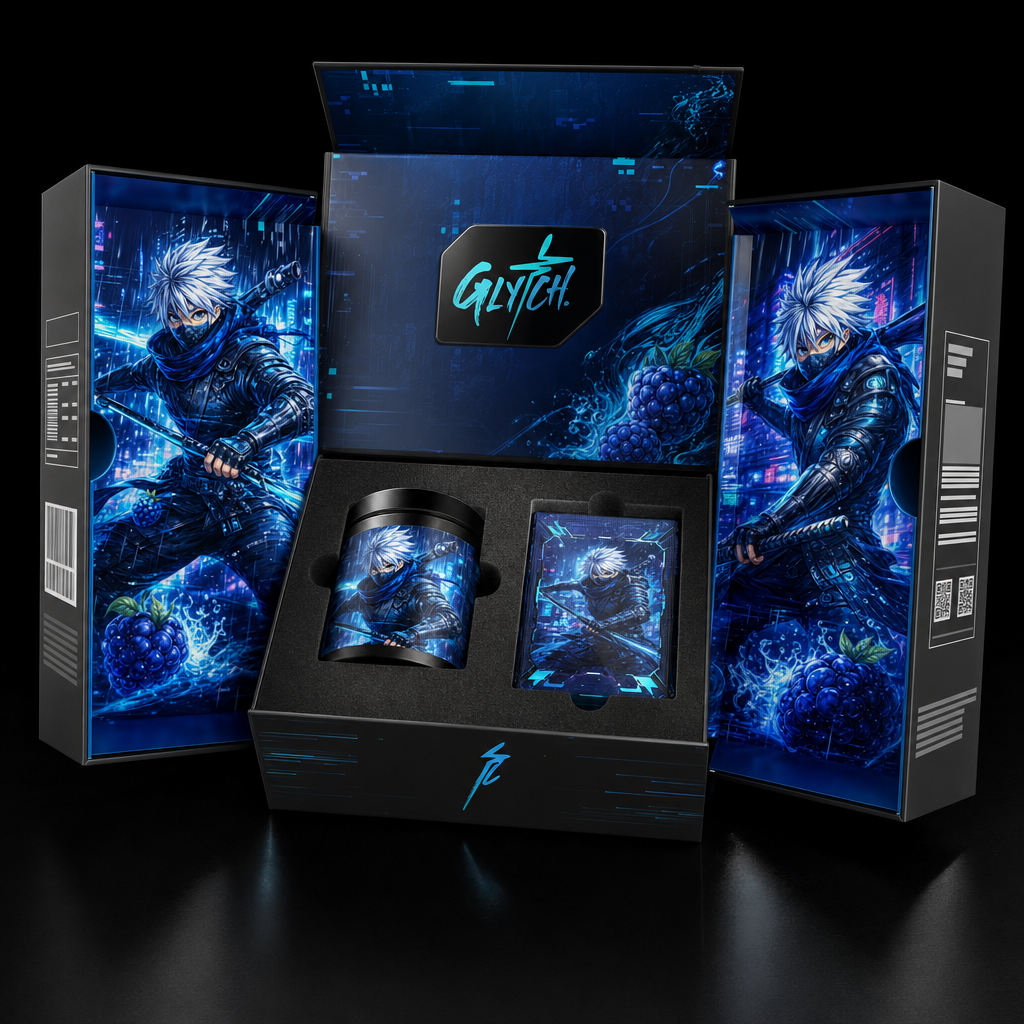

• Blue Razz: cyan/midnight navy interior, use Blue Razz poster as character art reference.
